  Style Guide

This guide will help you customize the look and feel of your phpGedView site.  All files referenced in this style guide come from the themes directories and are designed such that you may make changes to them however you wish without disrupting the programming of phpGedView, though there may be some PHP code included in the files.  An understanding of CSS stylesheets and HTML is required to customize the site.  Some understanding of PHP might also be helpful.

Style Guide Contents

Steps to Customize your Theme
The following steps will guide you as you build a custom theme for PhpGedView:

  1. Make a copy of one of the provided theme directories to provide a foundation for customizing.
  2. Edit the $theme_name (in theme.php) to the name you'd like to give out to your theme (usually same as the name of your theme's directory
  3. Replace the header.png image or header.jpg image in the theme directory with one of your own.
  4. Edit the style.css file to change colors and borders
  5. Further edit the header.html, footer.html, toplinks.html, print_footer.html, print_header.html, and sublinks.html files to change the layout and positioning of elements
  6. Edit theme.php, at the bottom of file, to further adjust the layout of the pedigree and descendancy charts.
  7. To use your own images, make a copy of the "images" directory.  Then edit the theme.php file and change the $PGV_IMAGE_DIR to the location of your "images" folder.  Replace the images in your image folder with your desired images.

Page Overview
A page generated by phpGedView is divided into 5 sections:

  1. Header - controlled by the header.html file.  This section is at the top of every page and is the first thing printed after the <body> tag.  It adds a language changing options if you have enabled multi-language in the configuration. It may contain any header information, branding, etc. for your site. When in print preview this is controlled by print_header.html instead of header.html.
  2. Top Navigation Links - controlled by the toplinks.html file.  This section will be included immediately after the header.html file and contains the navigation links to the different areas of the site.  You can modify this file to use different images or remove section links.
  3. The Main Body - controlled by phpGedView pages.  You shouldn't need to modify the code that generates this section unless you really want to.
  4. Individual Sublinks - On the individual details page is a section of navigational links that take the visitor to different areas of the site based on the current individual being viewed.
  5. Footer - controlled by footer.html.  This section is included after the page is generated.  The default that comes with phpGedView prints the contact links.  This would be a good spot for links to other websites or web rings and for a copyright statement. When in print preview this is controlled by print_footer.html instead of footer.html.
  6. Required Footer - phpGedView will automatically generate a footer with a "Powered By PhpGedView" image and link to the phpGedView homepage.  It will also add a print preview link.  I can't stop you from changing this section if you know PHP, but if you do change it please include, at the very least, a link to the phpGedView home page somewhere on every page.

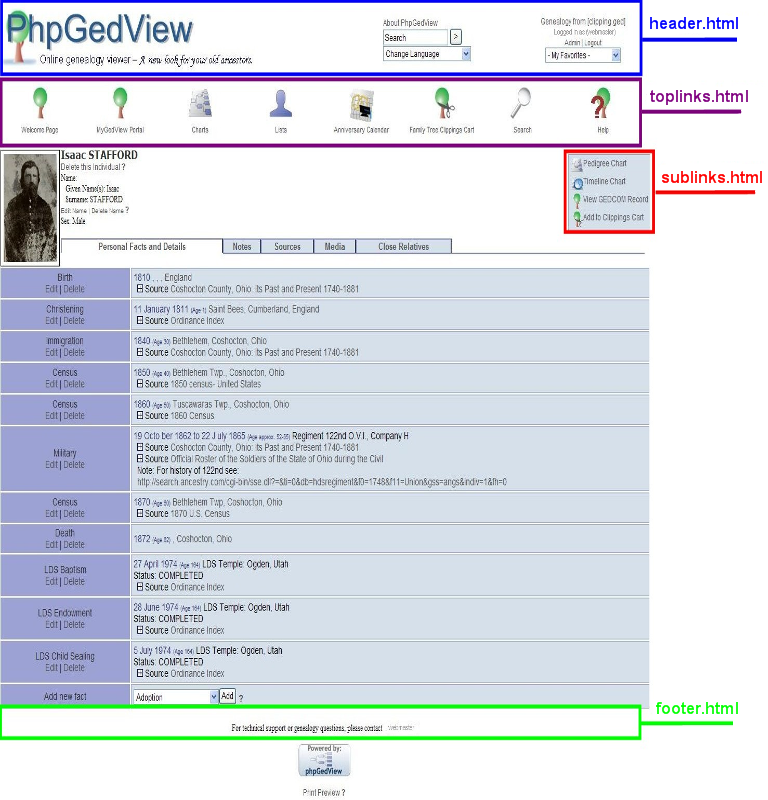

These sections are displayed graphically here in the following image (from themes/standard/):

CSS Stylesheets

PhpGedView uses CSS stylesheets extensively throughout the site.  All stylesheets are controlled by the file style.css.  These stylesheets give you a great deal of flexibility over the graphical layout, colors, fonts, borders, etc of the site.  Play around and see what you can make it do.  If you come up with something creative, then share it with the rest of the community.  The following sections describe what each style class defined in style.css graphically corresponds to on the pages.

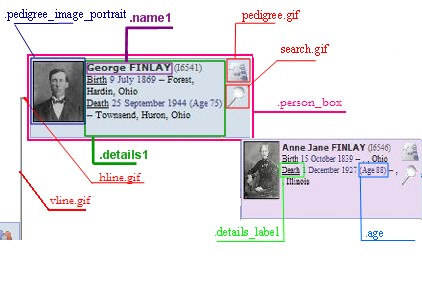

This image corresponds to the pedigree chart and the descendancy chart. The .pedigree_image_portrait is sometimes replaced by .pedigree_image_portrait_rtl, .pedigree_image_landscape, or .pedigree_image_landscape_rtl depending on language and if the view is in landscape or portrait mode. The .name1 and .details1 classes can also be replaced by .namezoom and .detailszoom when user zooms in.

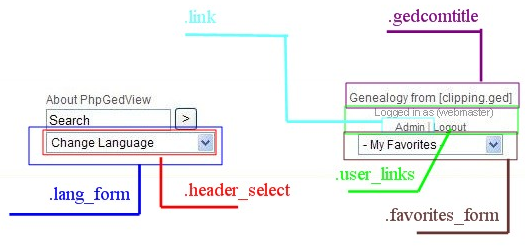

This image shows the stylesheets applied to the header portion of the page. If the languages are shown as flags then the class would be .flag instead of the .header_select.

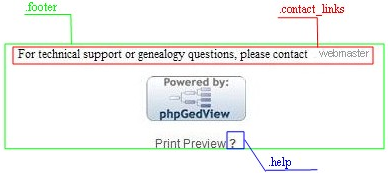

This image shows the stylesheets applied to the footer portion of the page.

The following stylesheets are in the toplinks.html section of the page: .menuitem, .menuitem_hover, .submenu, .submenuitem, and .submenuitem_hover.

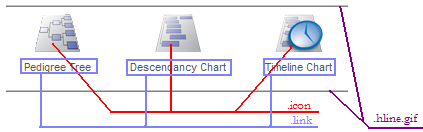

This image shows the stylesheets applied to the default top navigational links.

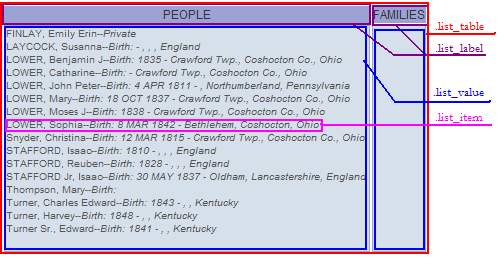

This image shows the list table stylesheets.  List tables are found on the individual list, family list, source list, place hierarchy and multimedia list pages.

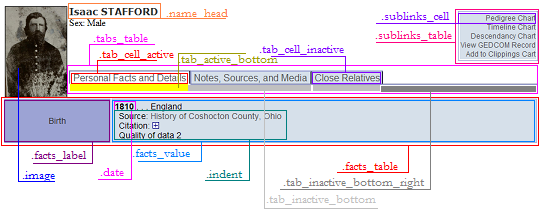

This image shows the stylesheets applied to the individual's details section. The .facts_label will be .facts_labelred if the fact has been deleted. The .facts_label will be .facts_labelblue if the fact has been added/modified. This is also how .facts_value is changed to either .facts_valuered or .facts_valueblue. The .source_citations stylesheet is used when source citations are shown in the facts, see plus (+) sign.

This image shows the stylesheets applied to the individual's close relatives section.

The .error stylesheet is when error messages are shown and the .warning stylesheet is when the warning messages are shown. The .news_date and .news_title stylesheets are used on the Welcome Page. The .current_day stylesheet is used on the anniversary calendar in month view. The .listlog stylesheet is used when viewing log file under admin menu. The .label stylesheet is used on the search form in addition to other places. The .formfield stylesheet is used on the login form. The Edit GEDCOM privacy contains .facts_label02, .facts_label03, and .facts_value02 stylesheets.

The following stylesheets are in the timeline chart: .field, .timeline_table, .person0, .person1, .person2, .person3, .persion4, and .person5.

Customizing Menus

With the introduction of PhpGedView v3.0 a new drop-down menuing system was introduced into the themes. This menu system was designed to be flexible and easy to change without designers having to know anything about the javascript and DHTML that drives it. You are free to change the menus however you want, or to use your own menu style if you don't want to use the menu system provided.

The menu system is driven by a PHP array structure that you build up in the page and then pass to the print_menu() function. Following is a description and documentation about each of the elements in the menu array.

A basic menu array looks like this (copied from the in code documentation of the print_menu function):

$menu["label"] = "Charts";
$menu["labelpos"] = "down"; // tells where the text should be positioned relative to the picture options are up down left right
$menu["icon"] = "images/pedigree.gif";
$menu["hovericon"] = "images/pedigree2.gif";
$menu["link"] = "pedigree.php";
$menu["class"] = "menuitem";
$menu["hoverclass"] = "menuitem_hover";
$menu["flyout"] = "down"; // options are down left and right
$menu["items"] = array(); // an array of like menu items
The $menu["label"] item of the menu array is set to the text label for the menu. In the example above this would be "Charts".

The $menu["labelpos"] is the position of the label text relative to the menu's icon. The options are: "up" - place text above the icon, "down" - place text below icon, "left" - place text to the left of the icon, "right" place text to the right of the icon. The default is "down".

$menu["icon"] is the relative path to the image that you want to use as the icon. If you leave out the "icon" index, then no image icon will be used, and the menu will just be a text menu.

$menu["hovericon"] is the relative path to the image that will be used when the user mouses over the menu. This will allow you to have mouseover effects.

$menu["link"] is the url where the user should be taken if they click on the menu.

$menu["class"] is the CSS stylesheet that should be used in the class attribute for the menu's containing

$menu["hoverclass"] is the CSS stylesheet to apply when the user mouses over the menu item.

$menu["flyout"] is the position where any submenus should appear relative to this menu item. The options are: "down" - the submenus will appear below the menu item, "right" - the submenus will appear to the right of this menu, and "left" - the submenus will appear to the left of this menu.

$menu["items"] is also an array containing menu item arrays. This is where all of the submenu items go that will appear when the user mouses over the menu item.

Following is a basic example of how to create a menu with 1 submenu item. More complicated menu examples can be found in the toplinks.html files for the different themes.

$menu = array();
$menu["label"] = "Simple Menu";
$menu["class"] = "menuitem";
$menu["items"] = array();

$submenu = array();
$submenu["label"] = "Menu Item 1";
$submenu["class"] = "submenuitem";

$menu["items"][] = $submenu;

The $menu array will print the text that appears on the screen. The $submenu array is for the first item that will appear when the user mouses over the $menu["label"] text. The line $menu["items"][] = $submenu; is a PHP construct to append an item to the end of an array. So you could create as many new submenus as you need and continually append them to the $menu["items"] array in the order you want them to appear.

Now since a submenu item has the same array structure as the main menu item, you can have any level of menu hierarchies. You would just add a $subsubmenu array to an items array. $submenu["items"][] = $subsubmenu;

Multiple hierarchies have not undergone any rigerous testing and are not present in any of the released code. So they should be used with caution.
